Analysis of the "Flash Crash"
Date of Event: 20100506
Complete Text



There are 9 exchanges that route orders to NYSE listed stocks: NYSE, Nasdaq, ISE, BATS, Boston, Cincinnati (National Stock Exchange), CBOE, ARCA and Chicago. Each exchange submits a bid and/or offer price for each stock they wish to make a market in. The highest bid price becomes the National Best Bid and the lowest offer price becomes the National Best Ask. Exchanges compete, fiercely at times, to become the best bid or offer because that is where orders will be sent for execution. Exchanges also go to great lengths to ensure they avoid crossing other exchanges (bidding higher than others are offering, or offering lower than others are bidding), because if they do, many High Frequency Trading (HFT) systems will immediately execute a buy/offer and capture an immediate profit equal to the difference. Today, it is very rare to see markets crossed in stocks for longer than a few milliseconds.

Beginning at 14:42:46, bids from the NYSE started crossing above the National Best Ask prices in about 100 NYSE listed stocks, expanding to over 250 stocks within 2 minutes (See Part 1, Chart 1-b). Detailed inspection indicates NYSE quote prices started lagging quotes from other markets; their bid prices were not dropping fast enough to keep below the other exchange's falling offer prices. The time stamp on NYSE quotes matched that of other exchange quotes, indicating they were valid and fresh.

With NYSE's bid above the offer price at other exchanges, HFT systems would attempt to profit from this difference by sending buy orders to other exchanges and sell orders to the NYSE. Hence the NYSE would bear the brunt of the selling pressure for those stocks that were crossed.

Minutes later, trade executions from the NYSE started coming through in many stocks at prices slightly below the National Best Bid, setting new lows for the day. (See Part 1, Chart 2). This is unexpected, the execution prices from the NYSE should have been higher -- matching NYSE's higher bid price, unless the time stamps are not reflecting when quotes and trades actually occurred.

If the quotes sent from the NYSE were stuck in a queue for transmission and time stamped ONLY when exiting the queue, then all data inconsistencies disappear and things make sense. In fact, this very situation occurred on 2 separate occasions at October 30, 2009, and again on January 28, 2010. (See Part 2, Previous Occurrences).

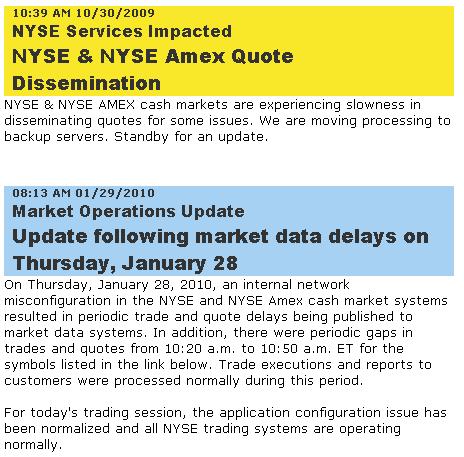

Charting the bid/ask cross counts for those two days reveals the same pattern as 5/6! Looking at the details of the trade and quote data on those days shows the same time stamp/price inconsistencies. The NYSE stated that during the same intervals, they were experiencing delays in disseminating their quotes!

In summary, quotes from NYSE began to queue, but because they were time stamped after exiting the queue, the delay was undetectable to systems processing those quotes. On 05/06/2010 the delay was enough to cause the NYSE bid to be just slightly higher than the lowest offer price from competing exchanges, but small enough that is was difficult to detect (See Part 3, The Evidence). This caused sell order flow to route to NYSE -- thus removing any buying power that existed on other exchanges. When these sell orders arrived at NYSE, the actual bid price was lower because new lower quotes were still waiting to exit a queue for dissemination.

This situation led to orders executing against whatever buy orders existed in the NYSE designated market maker (DMM) order book. When an order is executed, the trade is reported to a different system (CTS) than quotes (CQS). Since trade report traffic is much smaller than quote traffic, there is rarely any queueing or delay.

Because many of the stocks involved were high capitalization bellwether stocks and represented a wide range of industries, and because quotes and trades from the NYSE are given higher credibility in many HFT systems, when the results of these trades were published, the HFT systems detected the sudden price drop and automatically went short, betting on capturing the developing downward momentum. This caused a short term feed-back loop to develop and panic ensued.

Some trading firms have stated that they detected a problem with the accuracy of the data feed and decided to shut down which further reduced liquidity. We think the delay in NYSE quotes was at the root of this detection.

On the subject of HFT systems, we were shocked to find cases where one exchange was sending an extremely high number of quotes for one stock in a single second -- as high as 5,000 quotes in 1 second! During May 6, there were hundreds of times that a single stock had over 1,000 quotes from one exchange in a single second. Even more disturbing, there doesn't seem to be any economic justification for this. In many of the cases, the bid/offer is well outside the National Best Bid/Offer (NBBO). We decided to analyze a handful of these cases in detail and graphed the sequential bid/offers to better understand them. What we discovered was even more bizarre and can only be evidence of either faulty programming, a virus or a manipulative device aimed at overloading the quotation system. You can see our results in Part 4, Quote Stuffing.



Recommendations:
  1. Quote and trade data must be time stamped by the exchanges at the time it is generated. This will ensure delays can be detected by everyone.

    Reasoning: Changing the procedure to time stamp at the time a quote or trade is generated is a near trivial exercise. It probably comes as a surprise to many that time stamping isn't done that way now.

  2. Quote-stuffing should be banned.

    Reasoning: It is a manipulative device designed to overload the quotation system. Quote and trade dissemination (data feed) is a finite resource, and should be treated as such.

  3. Add a simple 50 millisecond quote expiration rule: a quote must remain active until it is executed or 50ms elapses. If the quote is part of the NBBO, it may be improved (higher bid or lower offer price) at any time without waiting for the expiration period.

    Reasoning: The exchanges must protect the integrity of the National Best Bid/Offer system. What is the point of having a National Best Bid/Offer, if not everyone in your nation (apologies to Alaska/Hawaii) can reasonably execute a trade against it? 50ms is approximately the time it takes light and electronic communication to travel from New York to California and back. It is impossible to transmit information any faster. This rule would not limit quote/trade rates. So long as trades are executing, quotes can update thousands of times a second. Only a small percentage of quotes today would be affected and the potential for catastrophically high rates would be eliminated.



Inquiries: pr@nanex.net

Publication Date: June 18, 2010
